PANEL MOUNT / SINGLE-CHANNEL / DC–DC

MGR-1 DD220D
Series

DC-control, DC-output solid state relays using low-impedance MOSFET output switching for compatible resistive and inductive DC loads.

Ask about this series ↗

MGR-1 DD220D40 straight front view — MGR-1 DD220D40 · front view

01 / MODEL RANGE

Eight current options.

Each number below is the model's maximum rated load-current value, not the current recommended for every installation. Continuous usable current depends on the heat sink, ambient temperature and mounting conditions.

MGR-1 DD220D10MAX RATED LOAD CURRENT10 A

MGR-1 DD220D25MAX RATED LOAD CURRENT25 A

MGR-1 DD220D40MAX RATED LOAD CURRENT40 A

MGR-1 DD220D60MAX RATED LOAD CURRENT60 A

MGR-1 DD220D80MAX RATED LOAD CURRENT80 A

MGR-1 DD220D100MAX RATED LOAD CURRENT100 A

MGR-1 DD220D120MAX RATED LOAD CURRENT120 A

MGR-1 DD220D150MAX RATED LOAD CURRENT150 A

02 / PRODUCT VIEWS

See every side.

White-background product views of the MGR-1 DD220D40 from the official MGR product archive.

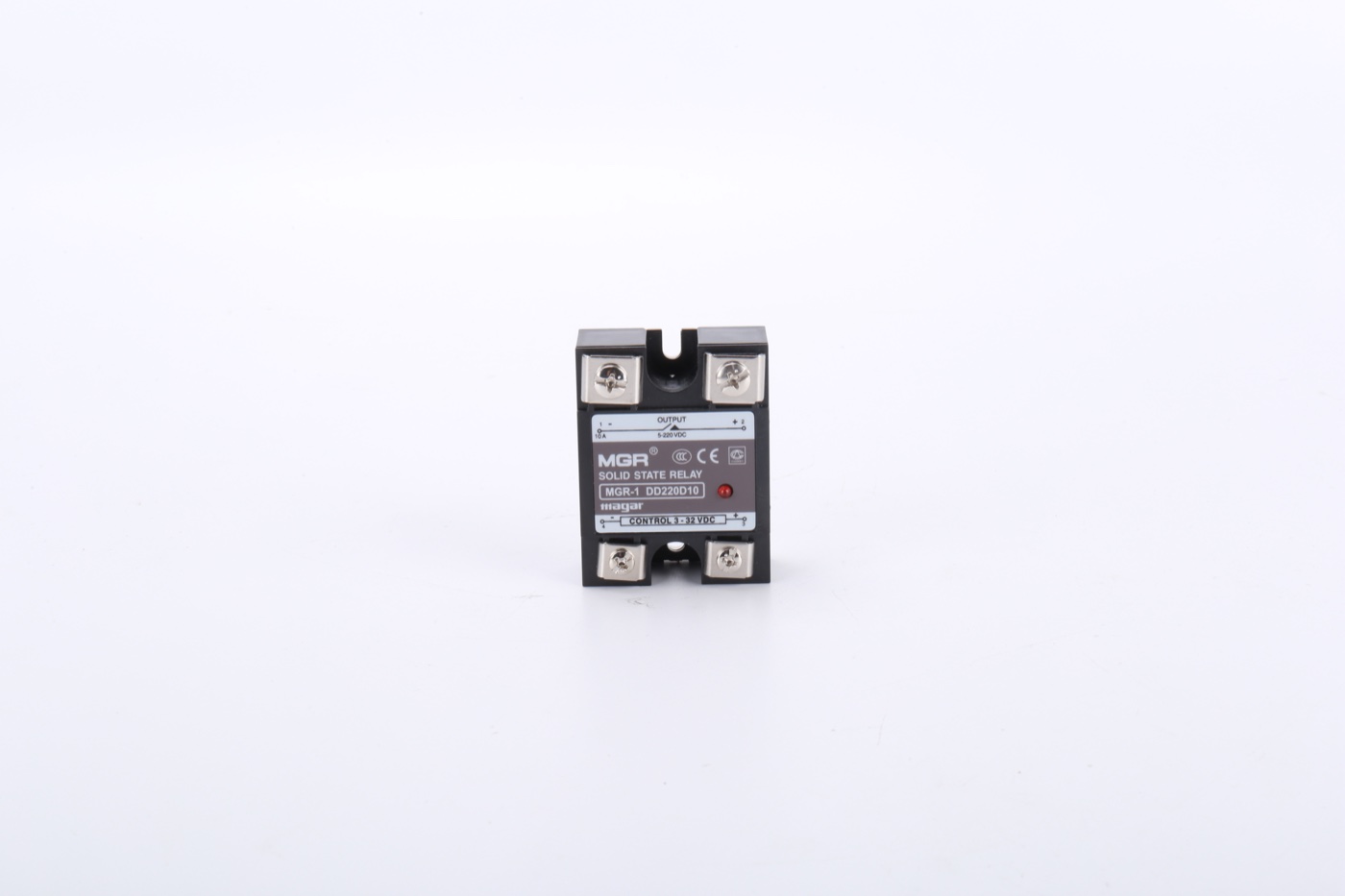

MGR-1 DD220D40 front view on white background — 01 · Front

MGR-1 DD220D40 three-quarter view on white background — 02 · Three-quarter

MGR-1 DD220D40 terminal-side view on white background — 03 · Terminal side

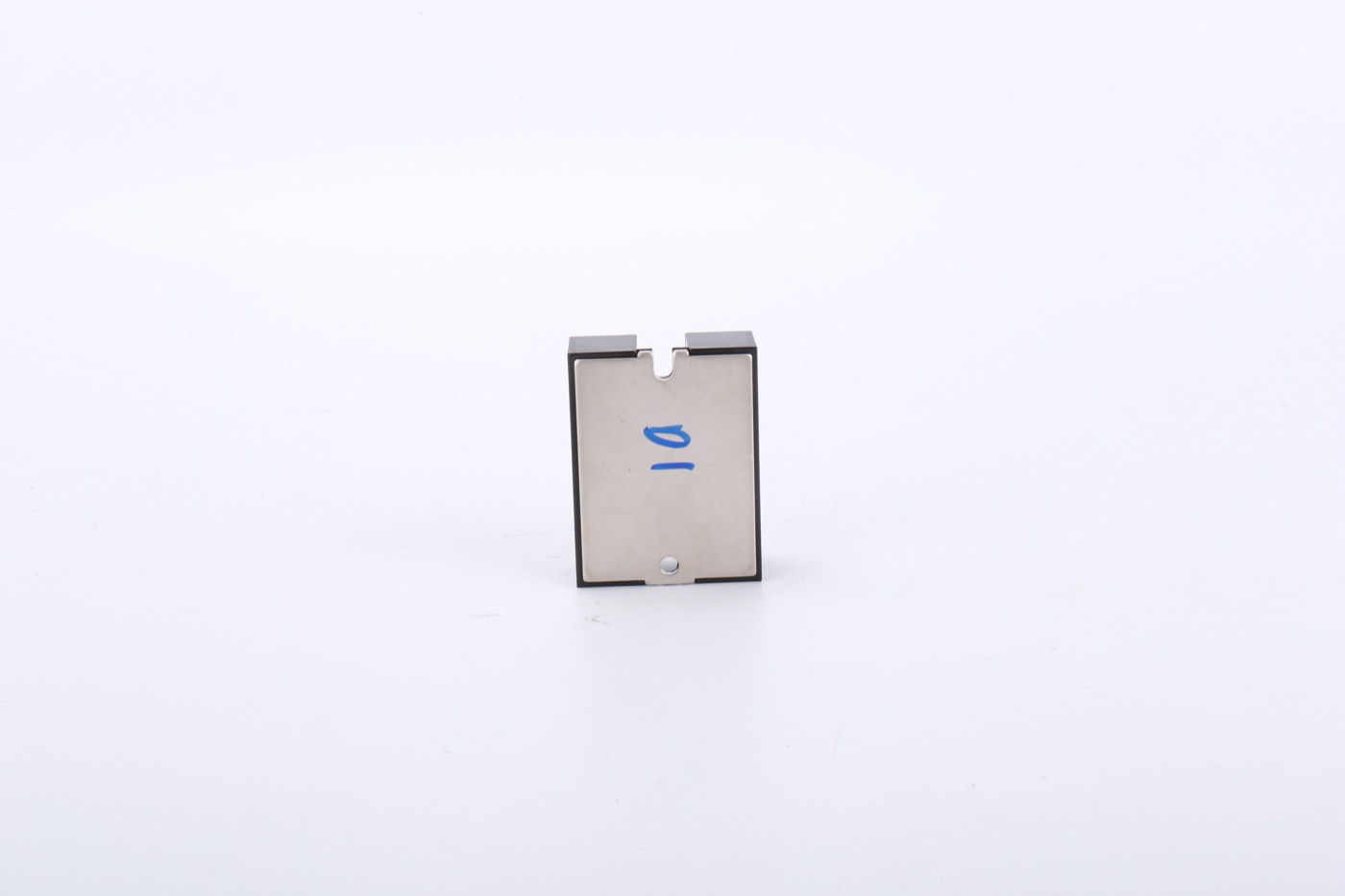

MGR-1 DD220D40 mounting base on white background — 04 · Mounting base

03 / PARAMETERS

Electrical reference.

Documented values for MGR-1 DD220D40 (40 A). Confirm the exact model datasheet before design-in.

Switching functionSingle-channel DC control / DC load

Representative modelMGR-1 DD220D40

Maximum rated load current40 A

Load voltage5–220 V DC

Control voltage3–32 V DC

Control current≤ 40 mA

Output componentLow-impedance MOSFET

Indication / protectionOutput-status LED / standard RC snubber / transparent terminal cover

Compatible loadsResistive and appropriately protected inductive DC loads

04 / DIMENSIONS

Panel-mount dimensions.

Common single-channel enclosure dimensions for the MGR-1 DD220D series. All dimensions are in millimetres.

MGR single-phase panel-mount solid state relay dimensional drawing in millimetres — Overall size: 57.4 × 44.8 × 28 mm

CONNECTION / MGR-1 DD220D40

Load above.
Control below.

Upper output terminals are 2 (+) and 1 (−). Connect supply + through the fuse and DC load to 2 (+), then 1 (−) to supply −. Lower terminals are 3 (+) and 4 (−), for 3–32 V DC control.

MGR-1 DD220D40 connection illustration — Select to view full size. Confirm the supplied model markings, circuit protection and cooling.

PRINCIPLE / MGR-1 DD220D40

A command.
A switched load.

The DC control input enables the DC output stage. This is on/off switching, not proportional voltage regulation. The animation is a functional block diagram, not an internal component schematic.

MGR-1 DD220D40 principle illustration — Select to view full size. Confirm the supplied model markings, circuit protection and cooling.

APPLICATION / MGR-1 DD220D40

Built into heating equipment.

A temperature controller commands a DC-output relay to switch a compatible DC heater. Observe both output and control polarity.

MGR-1 DD220D40 application illustration — Select to view full size. Confirm the supplied model markings, circuit protection and cooling.
